Home>> Scaffoldings Products > ''JSL'' Telescopic Props
Scaffoldings Products

JSL Ispat ''JSL'' Telescopic Props JSL Ispat
More » 1 | 2 | 3

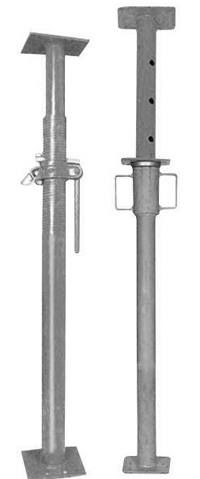

Adjustable Telescopic Props is one of the ideal, most economical & important part of shuttering system to support all kind of form work to slabs, beams, walls and columns. It is fabricated out of 'B' class steel tubes and is in two parts I.e. prop outer & prop Inner, the outer is fabricated out of 50NB (60.3 mm OD) tube having threaded/slotted top end, a malleable CI nut with handle for finer adjustment; the bottom is provided with welded 150x150x6 mm MS Flat Base plate. The Prop Inner is fabricated out of 40NB (48.3 mm OD) tube having holes at a regular interval of 150 mm. The end is provided with welded U/Flat or Beam Head. These props are available as per the following specification.

JSL Ispat

International Sizes SAFE LOAD for Medium Duty
Sizes C.H.* / E.H.* Closed Extended Approx. Wt.
0 1.10 Mtr. / 1.75 Mtr. 3500 KG 3000 KG 11.1 KG
1 1.50 Mtr. / 2.75 Mtr. 3200 KG 2300 KG 15.1 KG
2 2.00 Mtr. / 3.25 Mtr. 3000 KG 2200 KG 16.8 KG
3 2.00 Mtr. / 3.75 Mtr. 2900 KG 2000 KG 19.1 KG
4 3.00 Mtr. / 4.65 Mtr. 2300 KG 1150 KG 22.5 KG
