Home >> PVC Trunking & Trunklinks

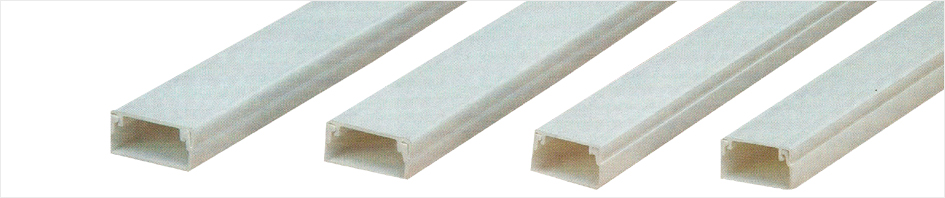

PVC Trunking & Trunklinks

JSL Ispat presents a durable wiring system that matches the stringent electrical safety standards for your home, office & showroom. Made from unplasticised high impact strength polyvinyl chloride JSL Ispat Trunking enhances your interiors while allowing easy access for maintenance.

Size (in mm) : 16x16, 20x12, 25x12, 25x16, 32x12, 32x16, 38x16, 50x16, 50x50, 75x50, 75x75, 100x50.

Salient Features

+ High impact strength & robust configuration .
+ Unplasticised formulation ensure no change in dimension /shape even after prolonged use/storage.
+ Many sizes to suit different applications.
+ Available in Ivory/Grey colour.

Trunking Dimension & Packing

S.No.	Double Lock	Single Lock	Standard Packing in Meter
S.No.	Double Lock	Single Lock	Standard Packing in Meter
1	16x16	-	400
2	20x12	1/2" (12/20mm)	400
3	25x16	3/4"(20/25mm)	200
4	32x16	1"(25/32mm)	200
5	38x16	38mm	100
6	50x16	50mm	100

Size (in mm)	Size (in inches)	Inner Dimensions	Outer Dimensions	Height	Wall thikness	Packaging
Size (in mm)	Size (in inches)	Inner Dimensions	Outer Dimensions	Height	Wall thikness	Packaging
12-20 mm	1/2"	12 mm	20 mm	12 mm	1.2 mm	100 pcs
20-25 mm	3/4"	20 mm	25 mm	12 mm	1.2 mm	100 pcs
25-32 mm	1"	25 mm	32 mm	32 mm	1.2 mm	100 pcs
36-38 mm	1.5"	36 mm	38 mm	38 mm	1.3 mm	50 pcs
45-50 mm	2"	48 mm	50 mm	50 mm	1.5 mm	50 pcs

Technical Data

Mechanical Properties
+ Tensile Strength : 390-420 kg/cm Ref ASTM D638
+ Specific Gravity: 1.3-1.4 (ASTM D 792)
+ Hardness : 70-75 D (Duro ASTM D 2240)

Electrical Properties
+ Dielectric Constant: 1.7-3.00(ASTM D 150)
+ Insulation Resistance: More than 100 megaohms
+ Electric Strength: No breakdown at 2 Kv x 50 hz. For 15 minutes

Thermal Properties
+ Working Temp.: 60°C - 65°C
+ Flammability: UL94V-0
+ Burning rate: Self Extinguishing (ASTM D 635)
+ Flame Die out Time: Less than 30 seconds

Chemical Properties
+ Water Absorption : 0-10-0.25% in 24 hrs. (ASTM D 150)
+ Effect of acid & akails: Highly resistant (ASTM D 543)

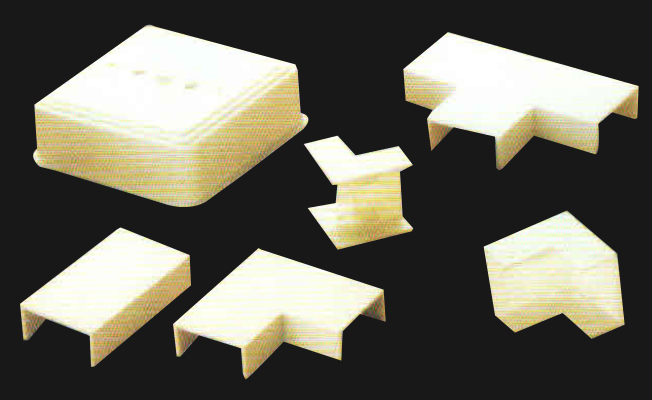

Fittings

S. No.	Description	Sizes(in mm)
1.	Coupler	20x12, 25x12, 32x12
2.	External Bend	20x12, 25x12, 32x12
3.	Internal Bend	20x12, 25x12, 32x12
4.	3 Way Tee	20x12, 25x12, 32x12
5.	Elbow	20x12, 25x12, 32x12
6.	Junction Linkers	75x75
